Extend standard microwave spectrurm analyzers to Mm-wave and Terahertz frequencies with VivaTech TeraHertz SAS. Our expertise extends to expanding signal generators, spectrum analyzers, and VNA's with capabilities to TeraHertz frequencies. We cover standard waveguide bands and customized frequencies from 18 to 670 GHz, offering flexibility for diverse applications. Synchronize with external spectrum analyzers in a seamless operation. With low conversion loss to optimize sensitivity, these downconverters allow convenient interfaces with most signal analyzers. Experience state-of-the-art innovation with VivaTech.
-
5G/6G broadband communications and antenna test range applications
-
Extend spectrum analyzers or VNA’s to mm-wave and THz
-
Coverage 50 - 75 GHz in standard waveguide bands
-
May also be used in block downconverter or upconverter modes
-
Synchronous frequency and swept operation
-
Internal LO multiplier and fundamental low conversion loss mixer
-
Rugged screened and ventilated enclosures
Specifications
Model THZBDC-15FB-6 | Parameter |
|---|---|
RF Input Frequency (GHz) | 50 - 75 |
Output Frequency (GHz) | DC - 25 (converter mode) |
LO (local oscillator) Range (GHz) | 8.33 - 12.5 |
Multiplication Factor | X6 |
IF Frequency (GHz) | 0.05 - 3 (spectrum analyzer) |

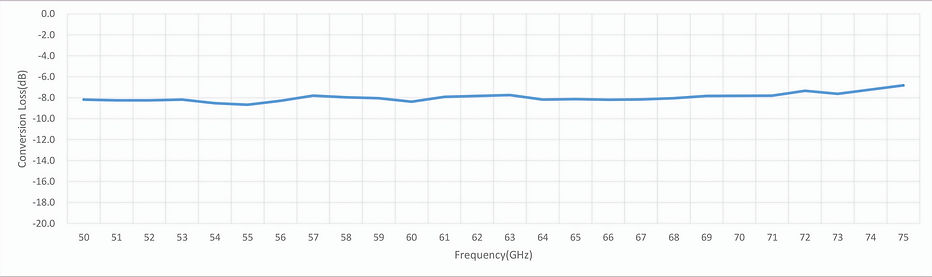

Conversion Loss (dB) | 10 typical, 13 max (322 MHz) |
RF port P1dB (dBm) | + 5 |
RF/IF Damage Level (dBm) | +13 |
LO Power (dBm) | +10 to +13 |
LO Damage Level (dBm) | +23 |
RF connector | WR 15 UG385/U |
LO/IF connectors | SMA-F common port (SA mode) |
1. **Compatible with Spectrum Analyzers, Signal Analyzers and Desktop & Portable VNAs up to 40 GHz
2. Internal X6 LO multiplier with fundamental mixer
3. Can be configured as down converter or upconverter.
4. External 240 V AC/DC power supply unit supplied
5. Other frequency ranges up to 1 THz on request
6. How to make a request: choose Model, or state frequency range, required interfaces, and email to: sales@vivatechthz.com
